Details

---

The 1100 Gamma-Ray Source Projector is engineered for safe, efficient, and reliable industrial radiography applications. Designed for use with Iridium-192 (Ir-192) and Selenium-75 (Se-75) sources, it enables radiographers to perform precise gamma radiographic inspections on welds, castings, and structural components.

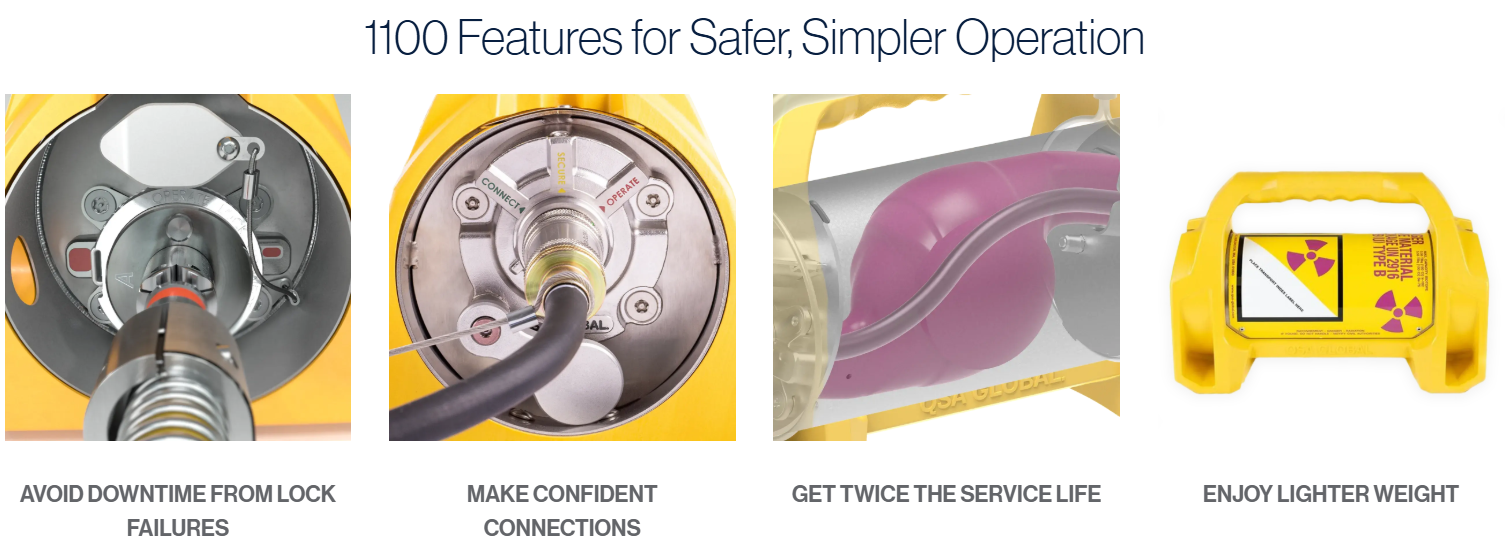

As the latest innovation from QSA Global, the 1100 model enhances safety, simplifies operation, and offers up to twice the service life compared to the proven 880 Series. An improved ergonomic handle provides greater carrying comfort, while the expanded labeling area accommodates required IATA transport markings, eliminating the need for additional overpack labels.

The 1100 maintains full backward compatibility with 880 Series controls, guide tubes, and shielding components. This allows NDT service providers to upgrade seamlessly without retraining personnel or replacing existing accessories, reducing downtime and investment costs.

Specifications: 1100 vs. 880 Delta

Specification	1100	880 Series Delta	Notes
Weight (with jacket)	46 lb (20 kg) Average	55 lb (25 kg)	7 lb (3.2 kg) lighter and safe for one-person operation.
Max Source Activity	Ir-192 (Model A426-1): 150 Ci (5.55 TBq) Se-75 (Model A426-2): 150 Ci (5.55 TBq)	Ir-192: 150 Ci (5.55 TBq) Se-75: 150 Ci (5.55 TBq) Yb-169: 108 Ci (4.00 TBq)	Same max source activity for Ir-192 and Se-75. Yb-169 only available on the 880 Series Delta
Labeling Area	8.25 × 10.52 in (20.96 × 26.72 cm)	6.13 × 9.50 in (15.57 × 24.13 cm)	Larger area on the 1100 supports IATA marks without overpack labels
S-tube Warranty	3 Years	1 Year	1100 tested internally for 2x ISO3999 Standards (100k Cycles)
Lock Assembly	Small Format Interchangeable Core (SFIC) lock with a replaceable core	Vertical Lock Assembly	1100 field-replaceable core that RSOs can swap out on-site
Transport Package	Type B(U) Certified Package	Type B(U) Certified Package	Same transport package
